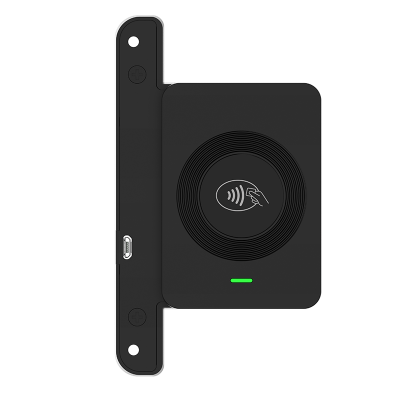

Elo Edge Connect RFID

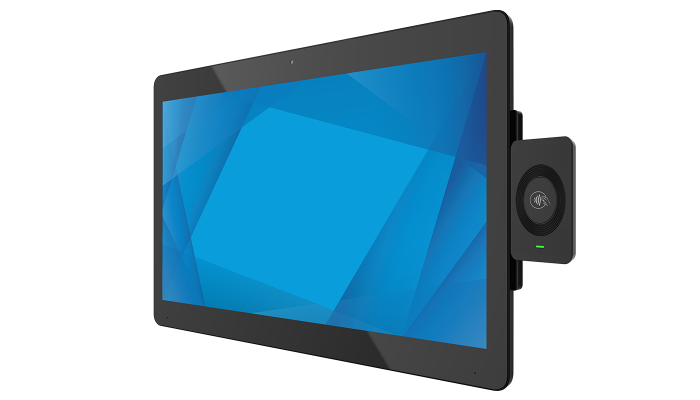

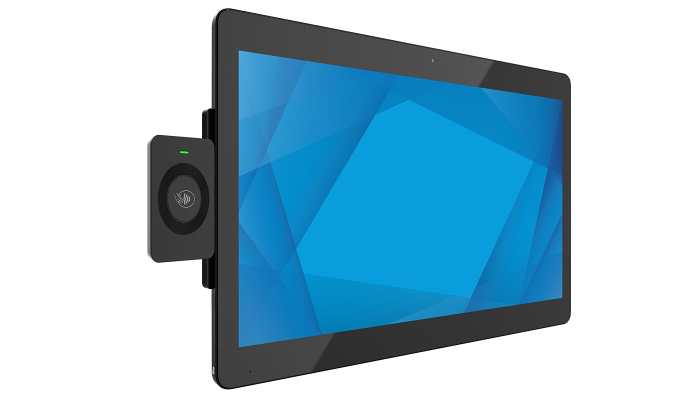

The Elo Edge Connnect RFID reader offers multi-interface support, dual frequency, mobile access and a flexible mount that allows users to fold the RFID behind the touchscreen.
Specifications:
Part Number(s)
E673037
Enclosure Color
Black
Compatibility
I-Series for Android
I-Series for Windows
EloPOS
Touchscreen Monitors – 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L
Touchscreen Signage – 3202L, 3203L, 4202L, 4303L, 4602L, 5053L, 5502L, 5503L, 5553L, 6553L
Power Supply
5VDC ? 5%
RF Interface
ISO/IEC14443 – ISO/IEC14443 Type A & B up to 848kbps, MIFARE Classic, MIFARE DESFire, HID Seos
ISO/IEC15693
HID iCLASS – ISO/IEC15693 mode
FeliCa – CSN only
HID Prox
Indala Prox
BLE – For HID Mobile Access applications
Host Interface
USB 2.0
Interface Modes
CCID
Keyboard Wedge
Beeper Support
Yes
Status Indicators
Yes
Frequency Range
125 KHz, 13.56 MHz, 2.44 GHz
Card & Protocols High Frequency
CCID:
iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2, T=CL, ISO 14443A, ISO14443B CSN, FeliCa, SmartMX with up to 848 kbps transmission rate (depending on card1), ISO 15693 with up to 26 kbps transmission rate (depending on card), Student ID in Apple Wallet
KEYBOARD WEDGE:
The following credentials can be handled autonomously: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Security Lvl 1) , MIFARE DESFire 0.6 MIFARE DESFire EV1/EV2 (MAC/DES/3DES / 3K3DES / AES), CEPA (CAN), FeliCa (Idm), PIV, ISO14443B (CSN), Student ID in Apple Wallet
Card & Protocols Low Frequency
HID Prox, Indala Prox, EM Prox (Standard Mode Only), AWID Prox
Supported Operating Systems
Windows 7/10
Ubuntu 18.04
Mac OS X
Android 7.x or later
Weight (Unpackaged)
0.165 lbs / 0.075 Kg
Weight (Packaged)
0.408 lbs / 0.185 Kg
Dimensions
4.71″ x 2.70″ x 1.15″ / 119.6 mm x 68.5 mm x 29.1 mm
Shipping Box Dimensions
6.89″ x 4.49″ x 2.72″ / 175 mm x 114 mm x 69 mm
Operating Temperature
10?C to 40?C / 50?F to 104?F
Storage Temperature
0?C to 50?C / 32?F to 122?F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%
Warranty
2-year
Regulatory approvals and declarations
FCC (US) – Class B
IC (Canada)
CE (Europe) – Class B
VCCI, MIC (Japan)
RCM (Australia)
SRRC (China)
UKCA
China RoHS
What’s in the Box
RFID
2 Mounting screws
2 Mylar screw covers
QIG
