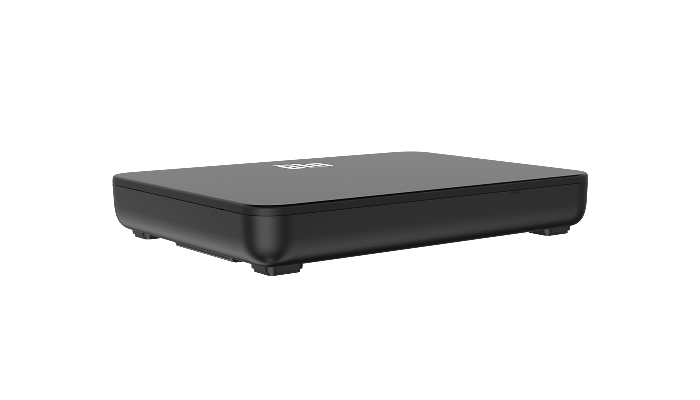

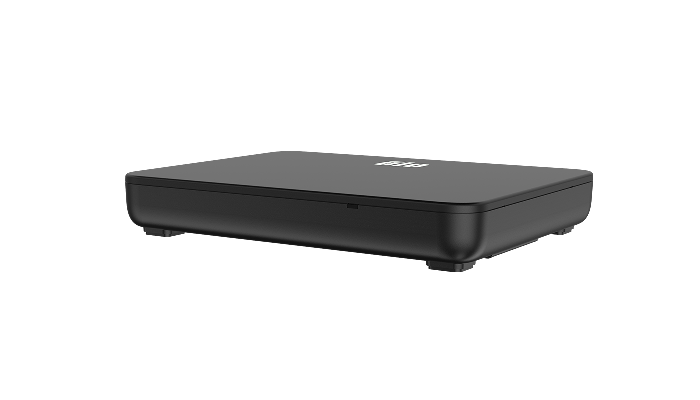

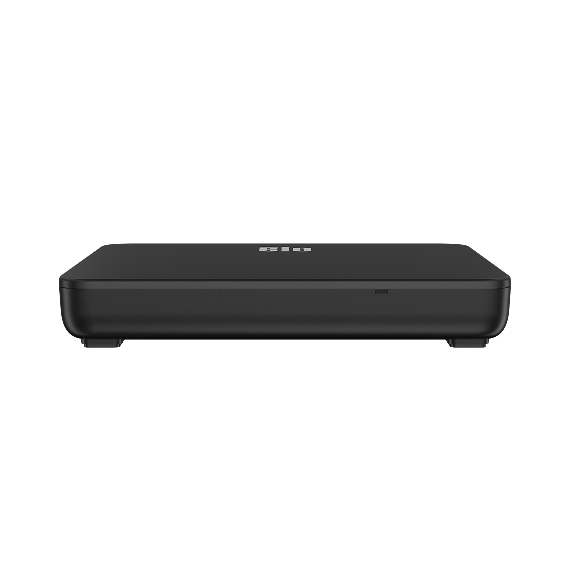

Elo EM10 Expansion Module
Specifications:
Part Number(s)
E863687
Enclosure Color
Black
Compatibility
DS10 Docking Station
Touchscreen monitors with USB C: 1002L, 1302L, 1502L
I/O Ports
24V DC IN Jack Connector
USB- Type C
USB- Type C – Display Out
Ethernet 10/100/1000 Mbps
24V Powered USB
4 x USB 3.0 Type A
Dimensions
7.32″ x 5.82″ x 1.14″ / 186 mm x 148 mm x 29 mm
Shipping Box Dimensions
9.25″ x 6.85″ x 5.51″ / 235 mm x 174 mm x 140 mm
Mounting Options
Countertop (Refer to QIG for more details)
Weight (Unpackaged)
0.99 lbs / 0.45 kg
Weight (Packaged)
3.31 lbs / 1.5 kg
Operating Temperature
0?C to 40?C / 32?F to 104?F
Storage Temperature
-20?C to 50?C / -4?F to 122?F
Humidity
Operating: 20% – 80%
Storage: 10% – 95%
Regulatory approvals and declarations
UL, FCC (US) – Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) – Class B
VCCI (Japan)
RCM (Australia)
China RoHS
MTBF
50,000 hours demonstrated
Warranty
1-year
What’s in the Box
Power Adapter (150W(24V/6.25A)
US power cord
EU power cord
1 x USB-C to USB-C cable (1.8mm)
6 x Tie Wraps
2 x M4 Screws
QIG
