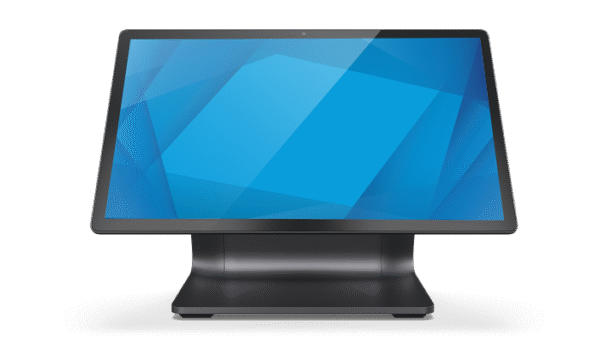

Elo Z30 POS Stand
Product Code: E483135

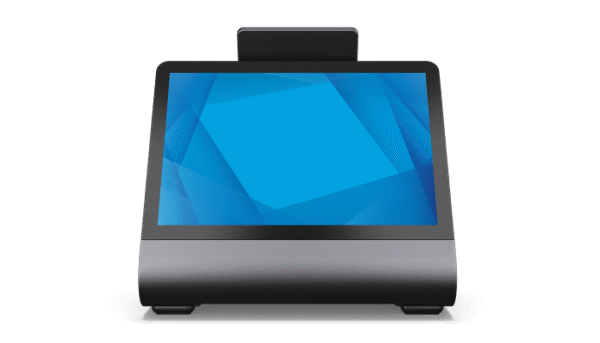

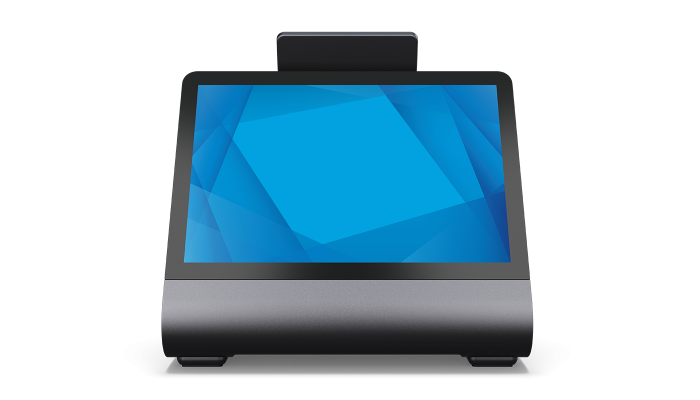

Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.
Add the perfect touchscreen display.
15″ I-Series 4 Slate
Specifications:
Part Number(s)
E483135 – Z30 POS Stand without CFD
E482940 – Z30 POS Stand with CFD
Enclosure Color
Dark Gray Metallic
Compatibility
Main Display:
15″?I-Series 4 Slate
Customer-facing Display (for use with E483135):
0702L ? Elo P/N: E796382
1002L ? Elo P/N: E155834 and E324341
1302L ? Elo P/N: E683595 and E683787
1502L ? Elo P/N: E125496
Display Head Connection
USB-C
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
RJ12 (Serial/cash drawer)* 12/24V
Powered USB 24V
USB-C output – CFD (DisplayPort, Touch & Power Delivery up to 27W)
*User will need to select mode
Power
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
On:
No CFD Model: 3.5W
With CFD Model: 8.32W
Off:
<0.1W
Sleep:
No CFD Model: 2.5W
With CFD Model: 8.32W
Real-Time Clock
lithium coin cell battery
Mounting Options

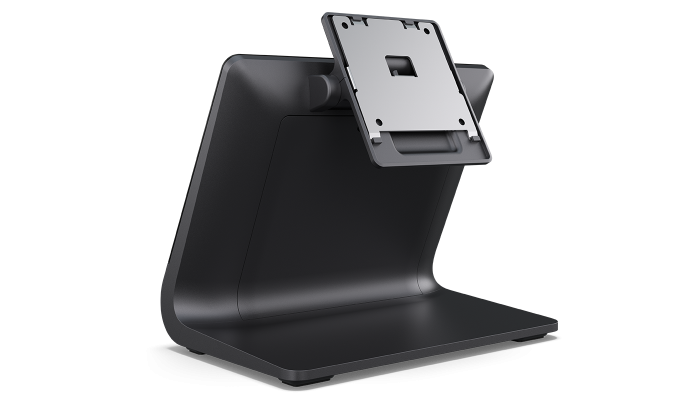

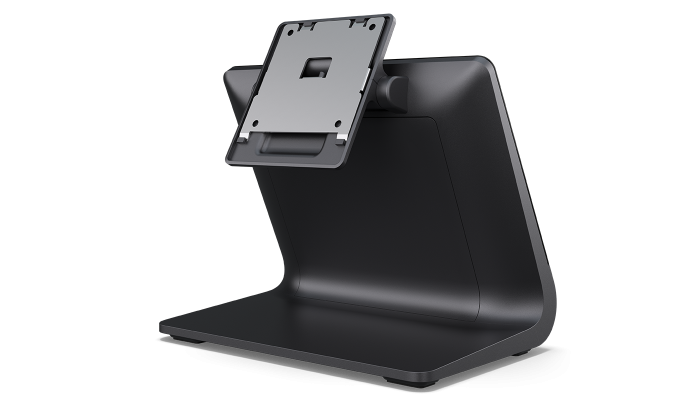

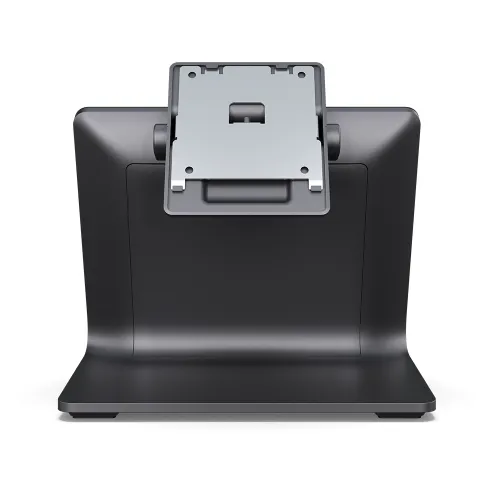

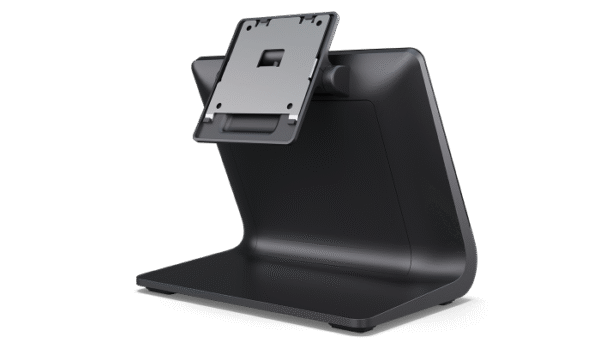

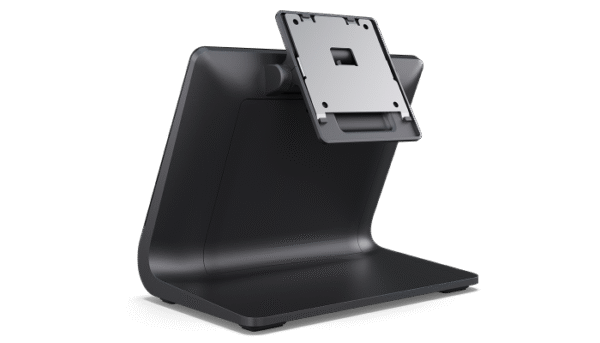

VESA 75 mm
Integrated Customer-Facing Display
Size -10.1 inch
Resolution – 1280×800 @ 60 Hz
Active Display Area (H x V) – 8.7? x 5.3? / 216.96 mm x 135.6 mm
Viewing Angle – Horizontal: ?80? or 160? total / Vertical: ?80? or 160? total
Brightness – LCD Panel: 400 nits, TouchPro PCAP 344 nits
Number of Colors – 8-bit (16.7M)
Touch Technology – TouchPro PCAP
Sealing – Touchscreen sealed to LCD
Number of Touches – 10
Weight (Unpackaged)
5.7 lbs / 2.6 kg
Weight (Packaged)
10.8 lbs / 4.9 kg
Dimensions
6.34″ x 9.55″ x 7.99″ / 162 mm x 242.6 mm x 203 mm
Shipping Box Dimensions
11.65″ x 11.42″ x 12.6″ / 296 mm x 290 mm x 320 mm
Operating Temperature
0? C to 40? C / 32? F to 104? F
Storage Temperature
-20? C to 50? C / -4? F to 122? F
Humidity
Operating: 20% – 80% / Storage: 5% – 95%
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage – Elo P/N: E375367
4 year warranty coverage – Elo P/N: E375573
5 year warranty coverage – Elo P/N: E375771
2 year warranty coverage + AUR – Elo P/N: E375970
3 year warranty coverage + AUR – Elo P/N: E376169
4 year warranty coverage + AUR – Elo P/N: E376362
5 year warranty coverage + AUR – Elo P/N: E376547
Regulatory approvals and declarations
FCC (US) Class B (With CFD Model is Class A only)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)
What’s in the Box
Z30 POS Stand
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2 x Zip Ties
4 x M4x6 mm screws in a plastic bag
1 x M4x8 mm screw in a plastic bag
1 x M3x6 mm screw in a plastic bag
Base Plate ? for mounting to a countertop
